ELECTRIC VALVES

NORMALLY CLOSED

Type

FP-22-SD-S08-04-*-*

Description

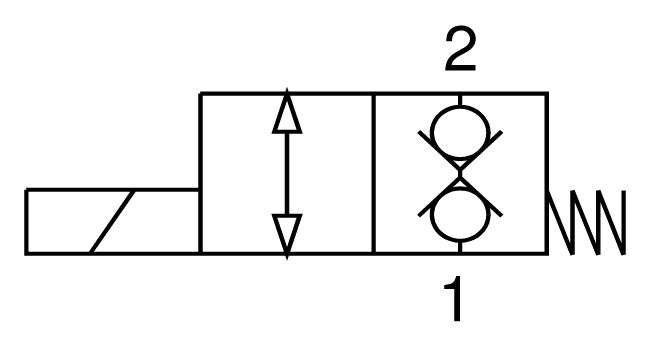

2 way, direct operated electric valve, normally closed

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridge in steel zinc plated, internal parts in hardened steel.
  • Flow range: 15 L/min;
  • Max. pressure: 250 bar (Coil 20 W)
  • Installation torque: see page 2
  • Cavity: 23081
  • Cartridge weight: see page 2
  • Coils: version C-13, see section Y
  • Oil temperature: -20°C + 80°C
  • Environment temperature: -30°C + 60°C
  • Recommended filtration: nominal max. 10µ, ISO 4406-19/17/14 (NAS8) or less.
  • Inlet voltage fluctuations must not exceed ±10% of nominal voltage.
Download
DATA SHEET
COIL TO BE USED
BODY TO BE USED
CAVITY DIMENSIONS
