  6. Overcenter valve with counterbalance, cartridge version, metric cavity
OVERCENTER

NOT BALANCED

Type

FPOCP-140-CM-35-*

Description

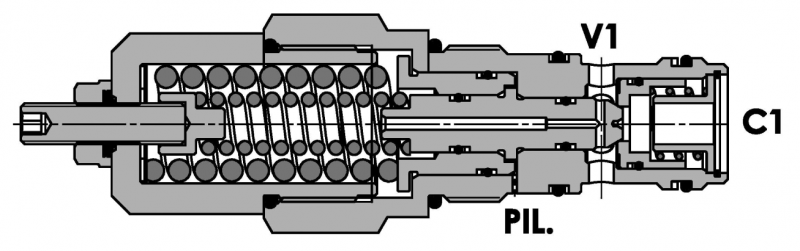

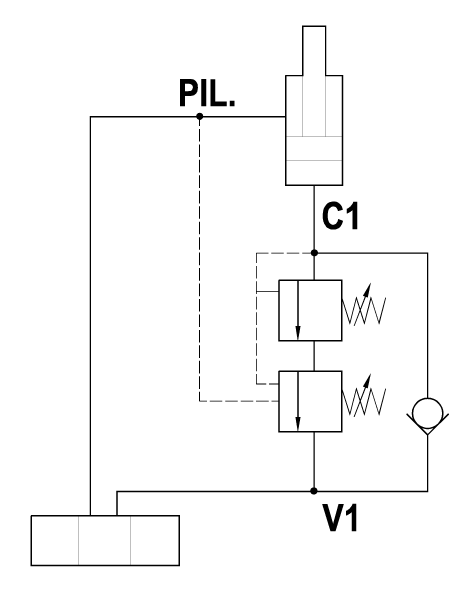

Overcenter valve with counterbalance, cartridge version, metric cavity

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: body is steel made. Internal parts are in hardened steel. External surface: zinc plated.
  • Rated flow: up to 140 l/min
  • Max. setting: 350 bar
  • Adjustement pressure: leakproof screw
  • Adjustable pressure range: see page 02
  • Cavity: 32381
Download
DATA SHEET
CAVITY DIMENSIONS
