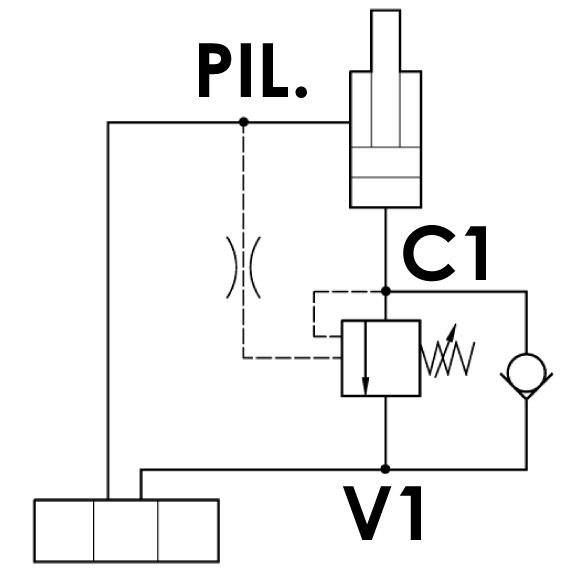

OVERCENTER

NOT BALANCED

Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: body is steel made. Internal parts are in hardened steel. External surface: zinc plated.
Rated flow: up to 140 l/min
Max. setting: 350 bar
Adjustement pressure: leakproof screw
Cavity: 32363
Weight: 1.230 Kg

Download

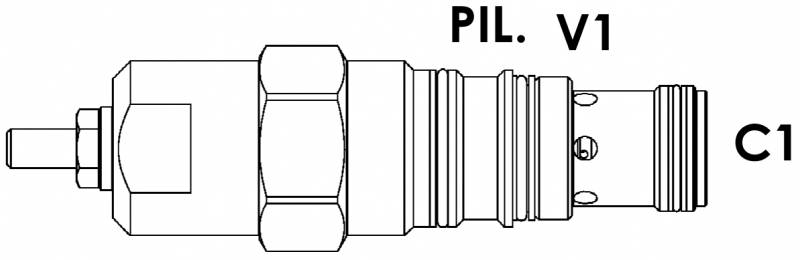

CAVITY DIMENSIONS

Ask for further information
