CHECK VALVE

CHECK VALVE

Type

FPRD-*-*-*-*

Description

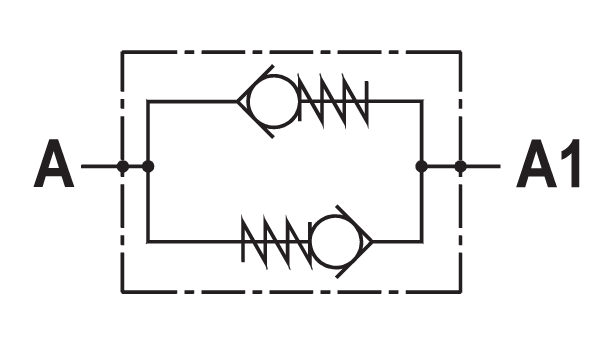

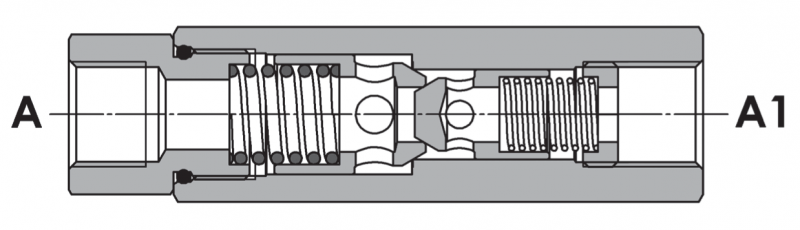

Bi-directional in line poppet check valve

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: body is steel made. Guided poppets are in hardened steel. External surface is zinc plated.
  • Rated flow: up to 85 l/min
  • Max. pressure: 350 bar, see data sheet
  • Cracking pressure: A-A1: 0.5 bar, A1-A: 8 bar standard
Download
DATA SHEET
