FLOW CONTROL VALVE

COMPENSATED

Type

FPRF-*-*-H-*-*

Description

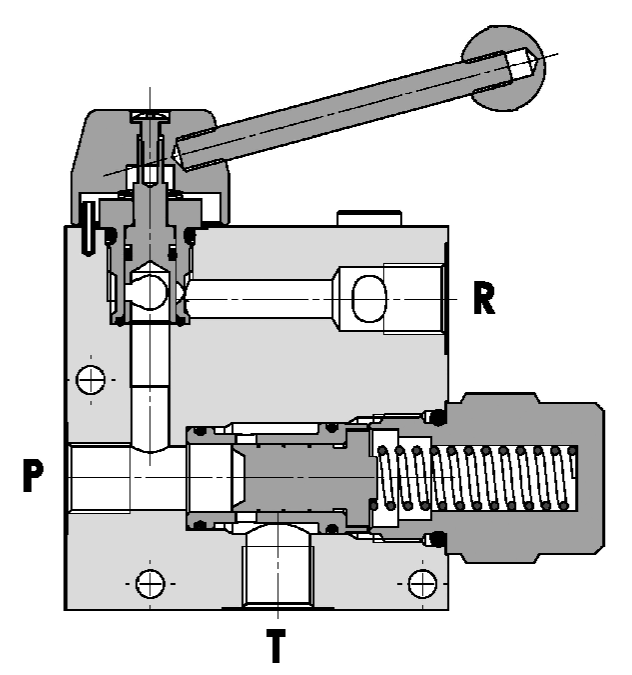

In line three way pressure compensated flow regulator, with exceeding flow to tank

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: aluminium body (std), steel body on request. Internal parts are in hardened steel.
  • Rated flow:
  • - 50 l/min with 30 l/min in “R” port for 3/8”
  • - 90 l/min with 50 l/min in “R” port for 1/2”
  • Max. pressure: 250 bar (std), 350 bar (ver.S)
  • Standby pressure: 5 bar
  • Weight: 1.120 Kg (std), 3.020 Kg (ver.S)
