FLOW CONTROL VALVE

COMPENSATED

Type

FPRF-50-DV-E6-R-1/2-*

Description

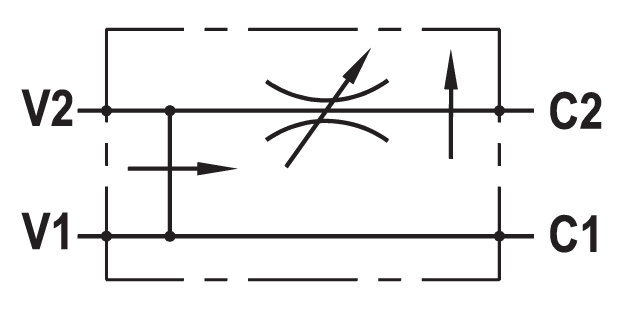

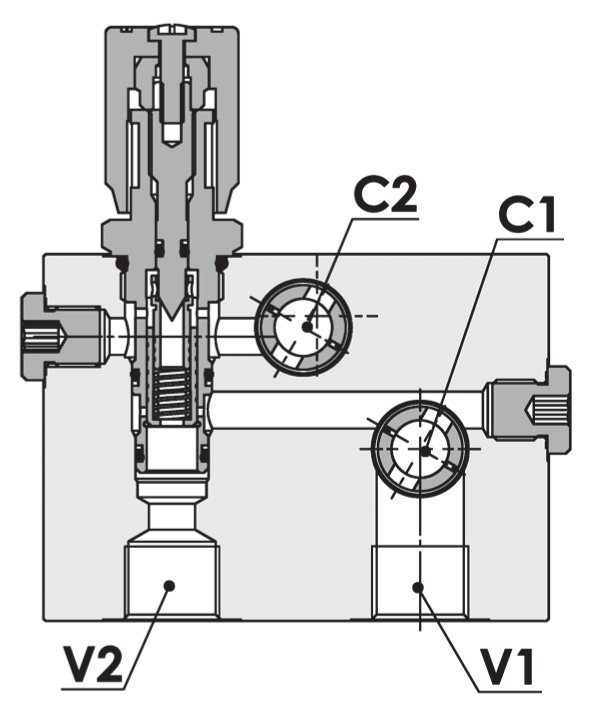

Three way, pressure compensated flow regulator, with exceeding flow to tank, flangeable on Char-Lynn 2000 motors

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridges in steel zinc plated, internal parts in hardened steel. Body is in high strenght alluminium alloy.
  • Rated flow:
  • - 50 l/min with 30 l/min in “C2” port
  • Max. pressure: 250 bar (aluminium body)
  • Standby pressure: 12 bar
  • Weight: 1,250 Kg
Download
DATA SHEET
