FLOW CONTROL VALVE

FLOW DIVIDER / COMBINER

Type

FPFD-S10-C(B)-*-*-*-*-SP-11B

Description

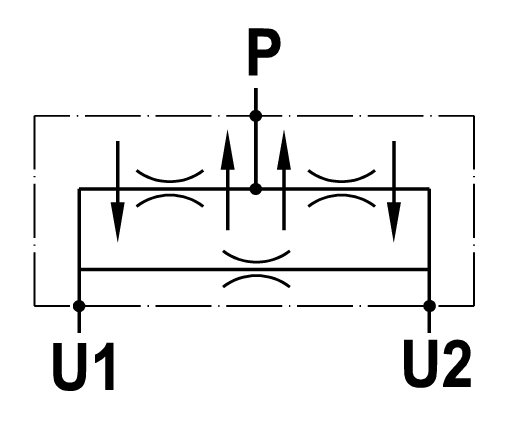

Flow divider/combiner, anti stall features

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: Cartridge is steel made zinc plated. Internal parts are in hardened steel. Body (only CB version) in high strenght aluminium alloy (steel body on request).
  • Rated flow: up to 50 l/min
  • Max. pressure: 250 bar (std), 350 bar (S)
  • Division percentage: 50/50 standard, special on request (accuracy 10% between ports U1-U2 with 120 bar differential pressure).
  • Cavity: 43101
Download
DATA SHEET
CAVITY DIMENSIONS
