Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: body is steel made. Internal parts are in hardened steel. External surface: zinc plated.
Rated flow: up to 150 l/min
Max. setting: 350 bar
Pilot ratio: 1 : 4 (standard), 1 to 8 on request
Adjustement means: leakproof screw adjustement
Adjustable pressure range: see page 02

Download

Ask for further information

Other product wich could be interesting

Fully balanced single overcenter valve, line mounted

ATTACCHI
G 1/4"

PORTATA (l/min)
35

FPOFB-35-S-1/4-L-*-*

Fully balanced single overcenter valve, line mounted

Fully balanced single overcenter valve, line mounted, internal pilot

ATTACCHI
G 1/4"

PORTATA (l/min)
35

FPOFB-35-S-1/4-L-P-*-*

Fully balanced single overcenter valve, line mounted, internal pilot

Fully balanced single overcenter valve, line mounted

ATTACCHI
G 1/4"
G 3/8"
G 1/2"

PORTATA (l/min)
50

FPOFB-50-S-*-L-P-*-*-*

Fully balanced single overcenter valve, line mounted

Fully balanced single overcenter valve, line mounted, internal and adjustable pilot, pressure gauge port

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
150

FPOFB-150-S-*-L-P-M-35-AP-*-*

Fully balanced single overcenter valve, line mounted, internal and adjustable pilot, pressure gauge port

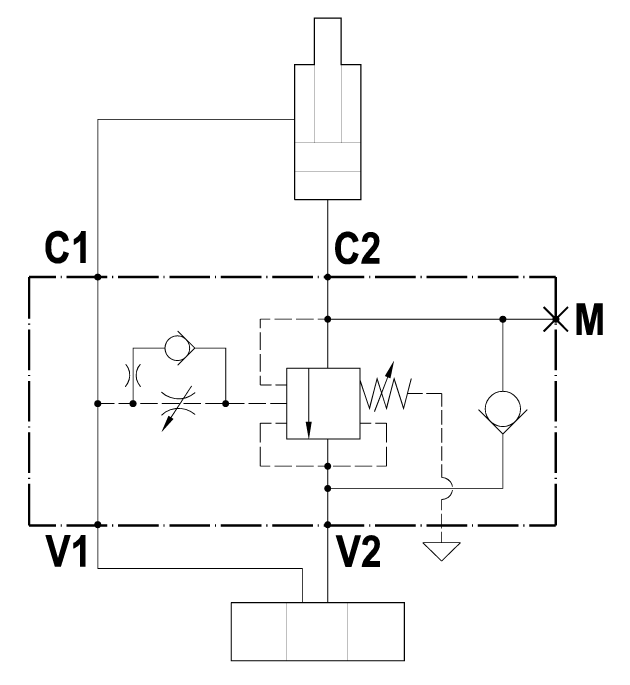

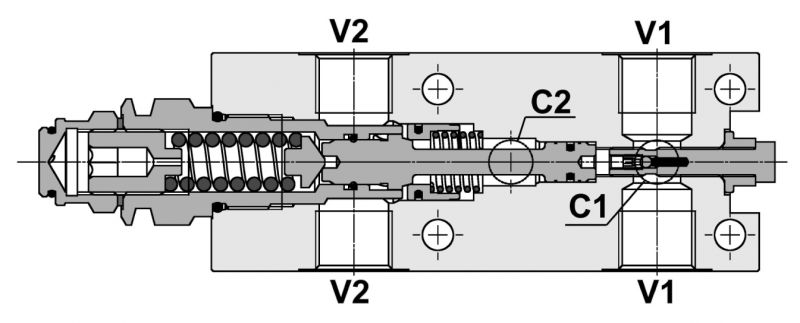

Fully balanced single overcenter valve, flanged mounting, internal and adjustable pilot, pressure gauge port

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
150

FPOFB-150-S-*-1F-P-M-35-AP-*-*

Fully balanced single overcenter valve, flanged mounting, internal and adjustable pilot, pressure gauge port
