PILOT OPERATED VALVE

SINGLE

Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: body in zinc plated steel. Internal parts are in hardened and ground steel.
Rated flow: 20 l/min
Max. pressure: 350 bar;
Cracking pressure: 3 bar standard, 8 bar on request
Pilot ratio: 1 : 4
Weight: 0.360 Kg

Download

Ask for further information

Other product wich could be interesting

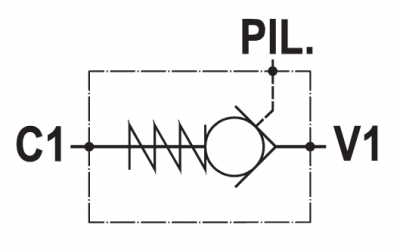

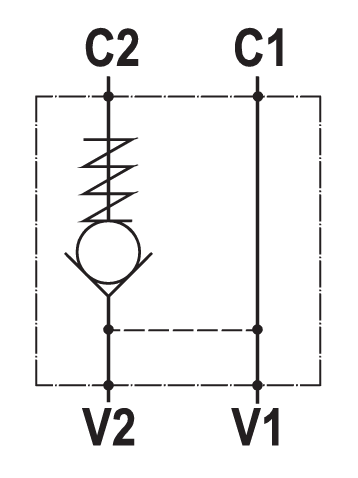

Single pilot operated check valve, line mounted

ATTACCHI
G 1/4"
G 3/8"
G 1/2"
G 3/4"

PORTATA (l/min)
85

Single pilot operated check valve, line mounted

Single pilot operated check valve, line mounted

ATTACCHI
G 3/8"
G 1/2"
G 3/4"

PORTATA (l/min)
85

FPS-L-*-*-*-*-*

Single pilot operated check valve, line mounted

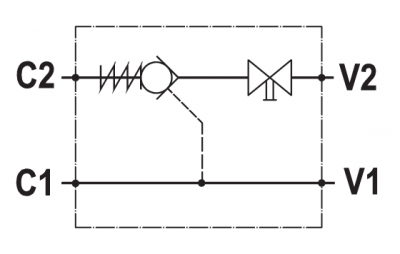

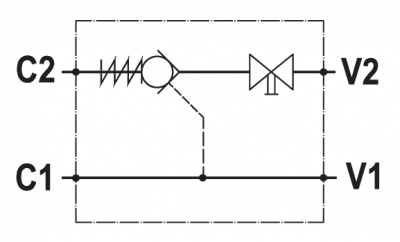

Single pilot operated check valve, line mounted with manual shut-off, left version

ATTACCHI
G 1/4"
G 3/8"

PORTATA (l/min)
30

Single pilot operated check valve, line mounted with manual shut-off, left version

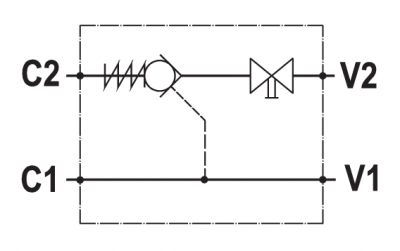

Single pilot operated check valve, line mounted with manual shut-off, right version

ATTACCHI
G 1/4"
G 3/8"

PORTATA (l/min)
30

Single pilot operated check valve, line mounted with manual shut-off, right version

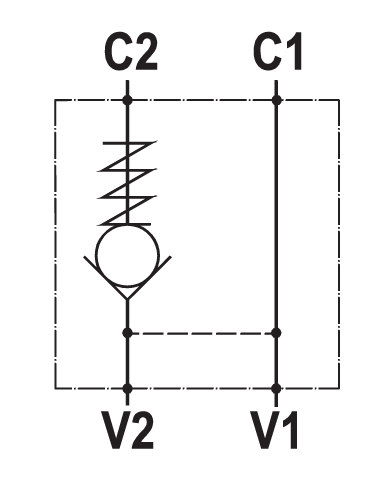

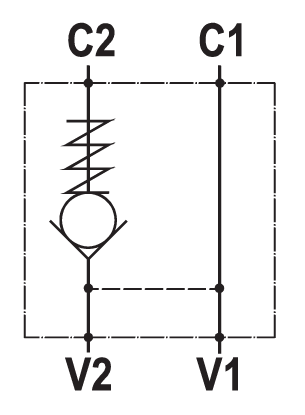

Single pilot operated check valve, gasket mounted

ATTACCHI
G 3/8"
G 1/2"
G 3/4"

PORTATA (l/min)
85

FPS-F-*-*-*-*-*

Single pilot operated check valve, gasket mounted

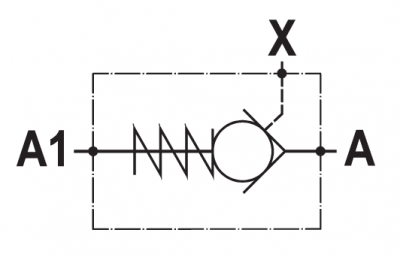

Single pilot operated check valve, drilled screw version

ATTACCHI
G 3/8"

PORTATA (l/min)
40

FPS-C-40-*-*-B-3/8-*-SP-5FA

Single pilot operated check valve, drilled screw version

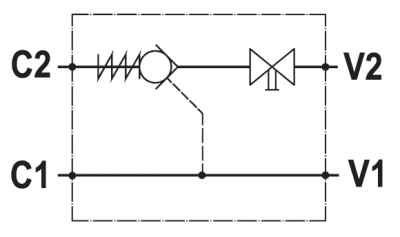

Single pilot operated check valve, drilled screw version with manual shut-off, right version

ATTACCHI
G 3/8"

PORTATA (l/min)
30

FPS-C-40-*-*-B-PR1-3/8-*

Single pilot operated check valve, drilled screw version with manual shut-off, right version

Single pilot operated check valve, drilled screw version with manual shut-off, left version

ATTACCHI
G 3/8"

PORTATA (l/min)
30

FPS-C-40-*-*-B-PR2-3/8-*

Single pilot operated check valve, drilled screw version with manual shut-off, left version

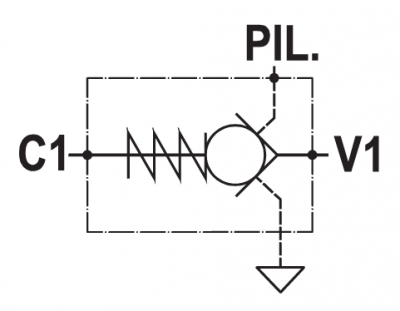

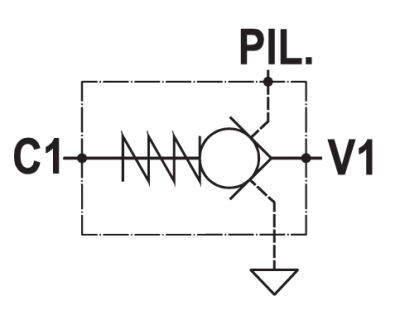

Single pilot operated check valve, fully balanced, line mounted

ATTACCHI
G 3/8"

PORTATA (l/min)
30

Single pilot operated check valve, fully balanced, line mounted

Single pilot operated check valve, fully balanced, line mounted

ATTACCHI
G 1/2"

PORTATA (l/min)
60

Single pilot operated check valve, fully balanced, line mounted
