PRESSURE REDUCING VALVE

PRESSURE REDUCING VALVE

Type

FPRPN-D-30-C(B)-*-3/8-*-*

Description

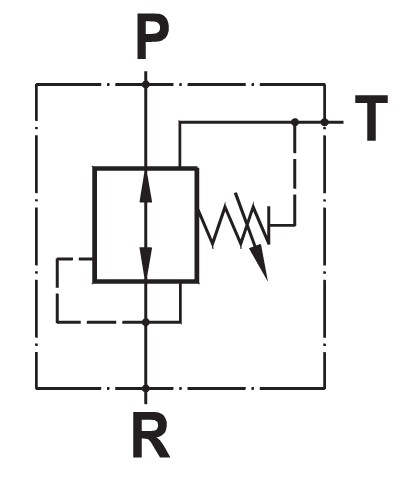

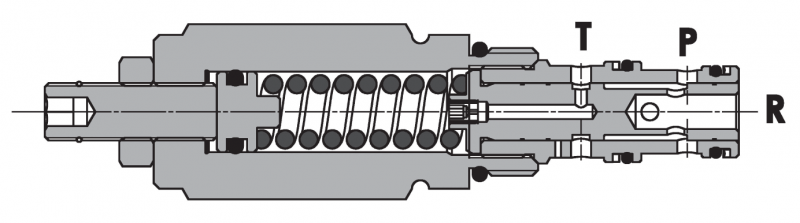

Pressure reducing valve, direct acting with reverse relief

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body (CB version) is in high strenght alluminium alloy (or zinc plated steel on request).
  • Rated flow: 30 l/min
  • Max. setting: 180 bar
  • Max. inlet pressure: 350 bar (250 bar, std CB version)
  • Max. differential pressure between R and P: 210 bar
  • Adjustement means: leakproof screw or handknob
  • Installation torque: 60 Nm
  • Cavity: 33101
  • Cartridge weight: 0,330 Kg
  • Cartridge with body weight: 0,630 Kg (std) - 1,200 Kg (ver.S)
