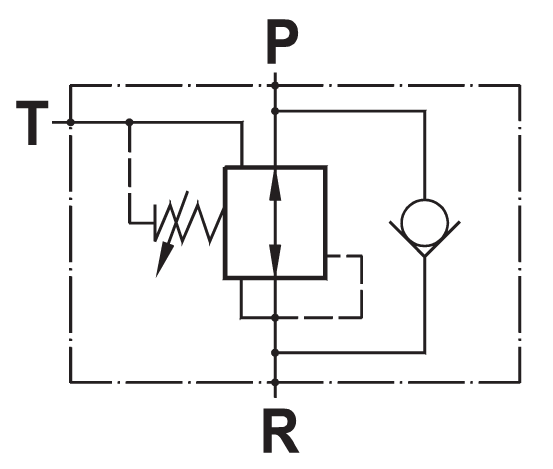

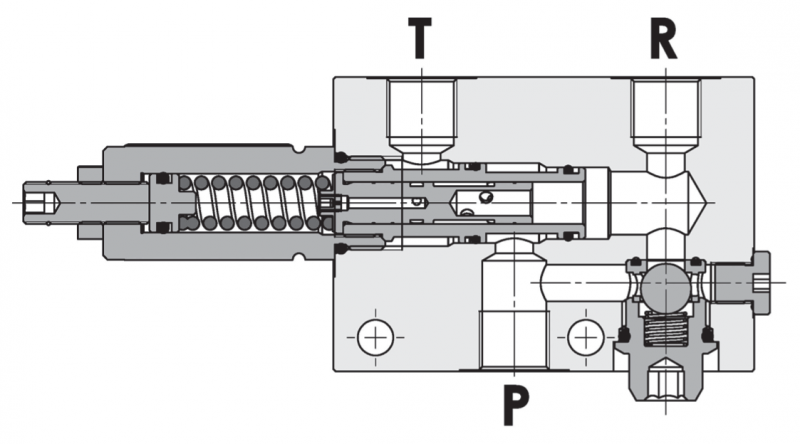

PRESSURE REDUCING VALVE

PRESSURE REDUCING VALVE

Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body is in high strenght alluminium alloy (steel body on request).
Rated flow: 30 l/min
Max. setting: 180 bar
Max. inlet pressure: 210 bar(std) - 350 bar (ver.S)
Cracking pressure: 0.5 bar
Adjustement means: leakproof screw or handknob
Weight: 0,900 Kg (std), 2,900 Kg (ver.S)

Download

Ask for further information

Other product wich could be interesting

Pressure reducing valve, 2 way, direct acting

ATTACCHI
G 1/4"

PORTATA (l/min)
25

FPRP-2D-25-CB-*-1/4-*-*

Pressure reducing valve, 2 way, direct acting

Pressure reducing valve, direct acting with reverse relief

ATTACCHI
G 3/8"

PORTATA (l/min)
30

FPRP-D-30-C(B)-*-3/8-*-*

Pressure reducing valve, direct acting with reverse relief

Pressure reducing valve, direct acting with reverse relief

ATTACCHI
G 3/8"

PORTATA (l/min)
30

FPRPN-D-30-C(B)-*-3/8-*-*

Pressure reducing valve, direct acting with reverse relief
