PRESSURE RELIEF

SINGLE DIRECT ACTING

DUAL CROSS DIRECT ACTING

FOR HYDRAULIC MOTORS

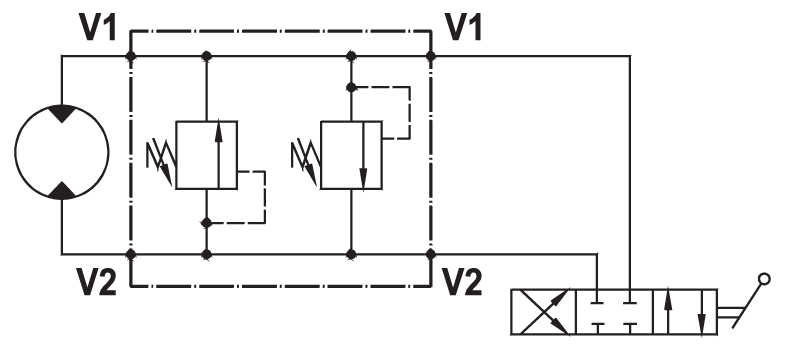

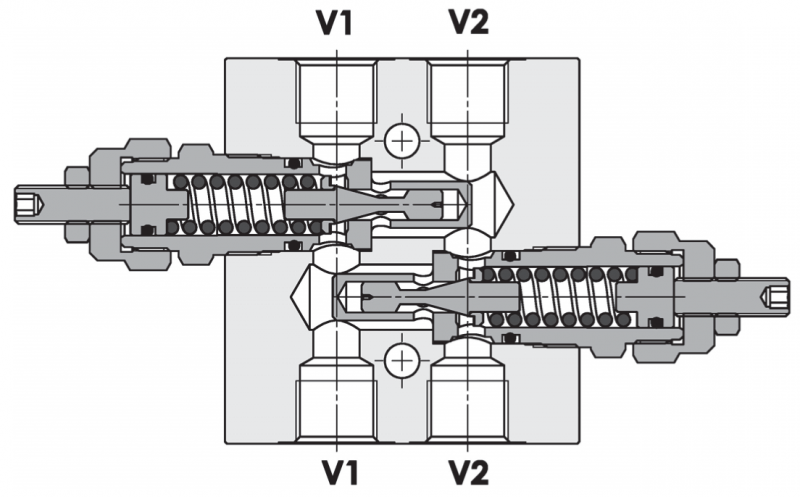

DUAL CROSS DIRECT ACTING

Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body is in high strenght alluminium alloy (steel body on request).
Rated flow: 80 l/min
Max. setting: 320 bar
Max. pressure: 250 bar (std) - 350 bar (ver. S)
Adjustement means: leakproof screw or handknob (P/R)
Weight: 1,325 Kg (std) - 2,750 Kg (ver.S)

Download

Ask for further information

Other product wich could be interesting

Dual cross direct acting relief valves line mounted version

ATTACCHI
G 3/8"

PORTATA (l/min)
40

FPM-D-40-IL-*-3/8-*-*-*

Dual cross direct acting relief valves line mounted version

Dual cross direct acting relief valves line mounted version

ATTACCHI
G 3/8"

PORTATA (l/min)
40

FPM-D-40-IL-*-3/8-S-*-SP-08N

Dual cross direct acting relief valves line mounted version

Dual cross direct acting relief valves line mounted version

ATTACCHI
G 1/2"

PORTATA (l/min)
40

FPM-D-40-IL-P-1/2-20-SP-09D

Dual cross direct acting relief valves line mounted version

Dual cross direct acting relief valves line mounted version, anti-cavitation

ATTACCHI
G 1/2"

PORTATA (l/min)
40

FPM-D-40-IL-AC-P-1/2-A-*

Dual cross direct acting relief valves line mounted version, anti-cavitation
