PRESSURE RELIEF

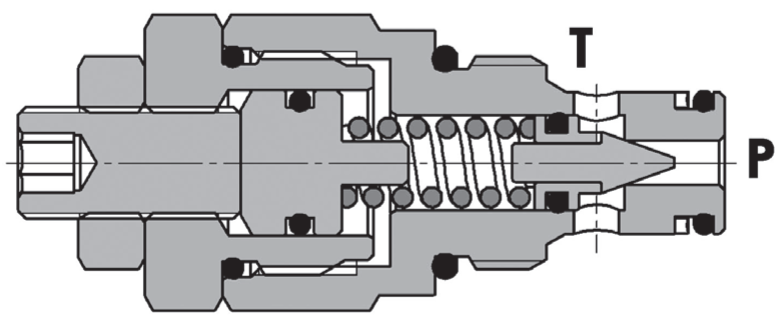

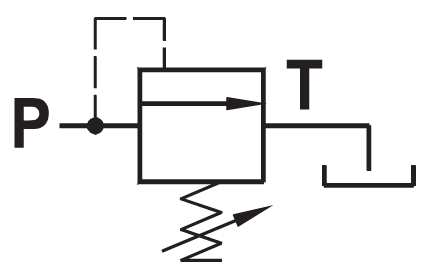

SINGLE DIRECT ACTING

DUAL CROSS DIRECT ACTING

FOR HYDRAULIC MOTORS

SINGLE DIRECT ACTING

Technical Specifications

TECHNICAL SPECIFICATIONS
Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body (only CB version) is in high strenght alluminium alloy (steel body on request).
Rated flow: 15 l/min
Max. setting: 350 bar
Adjustement means: leakproof screw or handknob (P/R)
Installation torque: 40-45 Nm
Cavity: 23081
Cartridge weight: 0,125 Kg
Cartridge with body weight: 0,380 Kg (std) - 0,600 Kg (ver.S)

Download

CAVITY DIMENSIONS
