PRESSURE RELIEF

SINGLE DIRECT ACTING

DUAL CROSS DIRECT ACTING

FOR HYDRAULIC MOTORS

SINGLE DIRECT ACTING

Technical Specifications

TECHNICAL SPECIFICATIONS

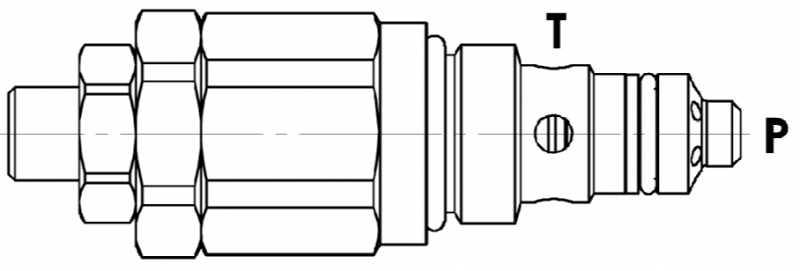

Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body (only CB version) is in high strenght alluminium alloy (steel body on request).
Rated flow: 25 l/min
Max. setting: 350 bar
Adjustement means: leakproof screw or handknob (P/R)
Installation torque: 45-50 Nm
Cavity: 23081 (see section X)
Cartridge weight: 0,157 Kg
Cartridge with body weight: 0,412 Kg (std) - 0.632 Kg (ver.S)

Download

CAVITY DIMENSIONS

Ask for further information

Other product wich could be interesting

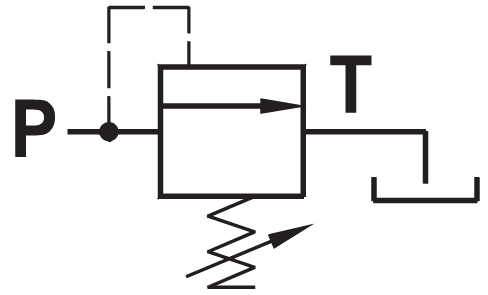

Direct acting, guided poppet style relief valve

ATTACCHI
G 1/4"
G 3/8"

PORTATA (l/min)
5

FPM-D-05-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve

Direct acting, guided poppet style relief valve

ATTACCHI
G 1/4"
G 3/8"

PORTATA (l/min)
15

FPM-D-15-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve

Direct acting, guided poppet style relief valve

ATTACCHI
G 3/8"
G 1/2"

PORTATA (l/min)
40

FPM-D-40-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve

Direct acting, guided poppet style relief valve

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
80

FPM-D-70-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve

Direct acting, guided poppet style relief valve, SAE cavity

PORTATA (l/min)
70

FPM-D-S10-C-P-*

Direct acting, guided poppet style relief valve, SAE cavity

Direct acting, guided poppet style relief valve - panel mounted version

ATTACCHI
G 1/4"
G 3/8"

PORTATA (l/min)
15

FPM-D-15F-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve - panel mounted version

Direct acting, guided poppet style relief valve - panel mounted version

ATTACCHI
G 3/8"
G 1/2"

PORTATA (l/min)
40

FPM-D-40F-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve - panel mounted version

Direct acting, guided poppet style relief valve - panel mounted version

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
80

FPM-D-70F-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve - panel mounted version

Direct acting, guided poppet style relief valve - panel mounted version

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
80

FPM-D-80F-C(B)-*-*-*-*-*

Direct acting, guided poppet style relief valve - panel mounted version

Direct acting, guided poppet style relief valve, high pressure

ATTACCHI
G 3/8"
G 1/2"

PORTATA (l/min)
30

FPMHP-D-30-C(B)-P-*-*-*-*

Direct acting, guided poppet style relief valve, high pressure

Direct acting, differential piston, relief valve

ATTACCHI
G 1/2"
G 3/4"

PORTATA (l/min)
100

FPM-A-100-CB-*-*-*-*

Direct acting, differential piston, relief valve
