Technical Specifications

TECHNICAL SPECIFICATIONS

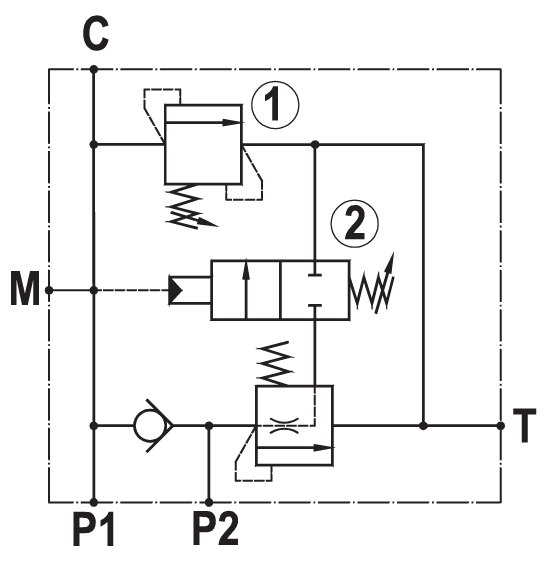

Materials: cartridge in steel zinc plated, internal parts in hardened steel. Body is in high strenght alluminium alloy.
Rated flow: 150 l/min
Rated flow relief valve (1): 40 l/min
Max. setting: 350 bar (1), 220 bar (2)
Max. working pressure: 250 bar on P2, 300 bar on P1
Adjustement means: leakproof screw
Weight: 2,400 Kg
